FMT-W40

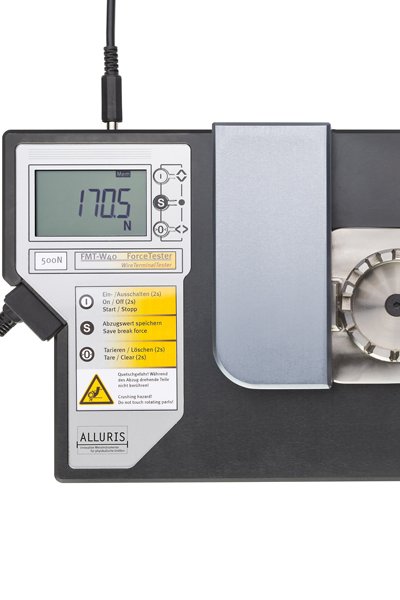

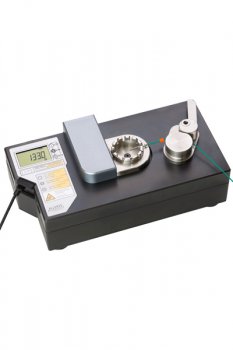

The motorized pull tester is a compact bench top instrument to measure the tensile strength of most common solder-free cable joints with end sleeves, pins, solder pins or similar wire terminal components.

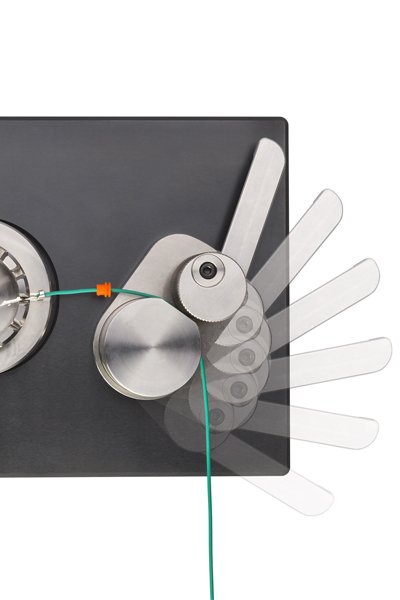

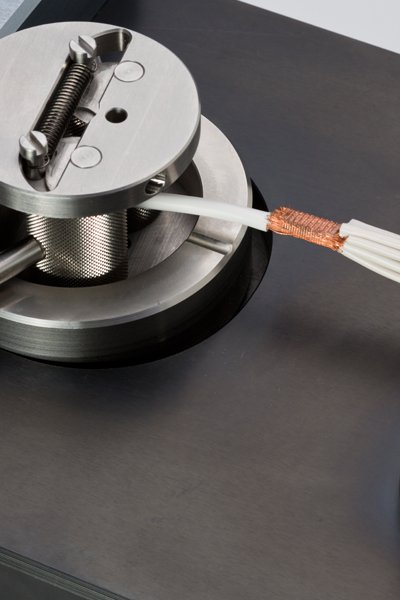

Test samples are inserted into the receptacle adaptor, which has 12 different slot widths (from 0.5mm to 6.0mm), covering all the prevalent wire strengths and terminal types. More adaptors are available under www.alluris.com.
With the optional software the measurement data can be downloaded via the USB interface to MSExcel. It takes only a few minutes to prepare a complete test report with statistical summary as pdf-file (more details please check software FMT-W_Connect).

Part no. Capacity F(nom)* Tolerance** Resolution**
FMT-W40C5 Motorized Pull Tester 500 N 0,5 % F(nom) 0,5 N
FMT-W40K1 Motorized Pull Tester 1000 N 0,5 % F(nom) 1 N
