TM 200

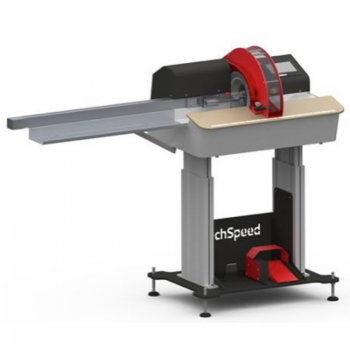

The RED TM 200L is a linear feed machine with a maximum feed length of 2 m.
It is a fully programmable, semi-automatic machine, adapted to the rapid implementation of high-volume production, allowing the exchange of programs between devices.

Technické parametry

NázevHodnota
Napájení 230V/16A , compressed air 6 bar.
Rozměry 1392-2892 x 690 x 1275-1675 mm
Otáčky 0 – 1200 rpm; stepless control, max rotation speed can be set independently.
Průměr svazku max. 20 mm (optional 35 mm)
Použití taping of wires, simple or complex and long wire harnesses and other materials, mostly for high volume batches
Hmotnost 205 kg
Šíře pásky 9 – 19 mm
Materiál pásky all available machine tapes
