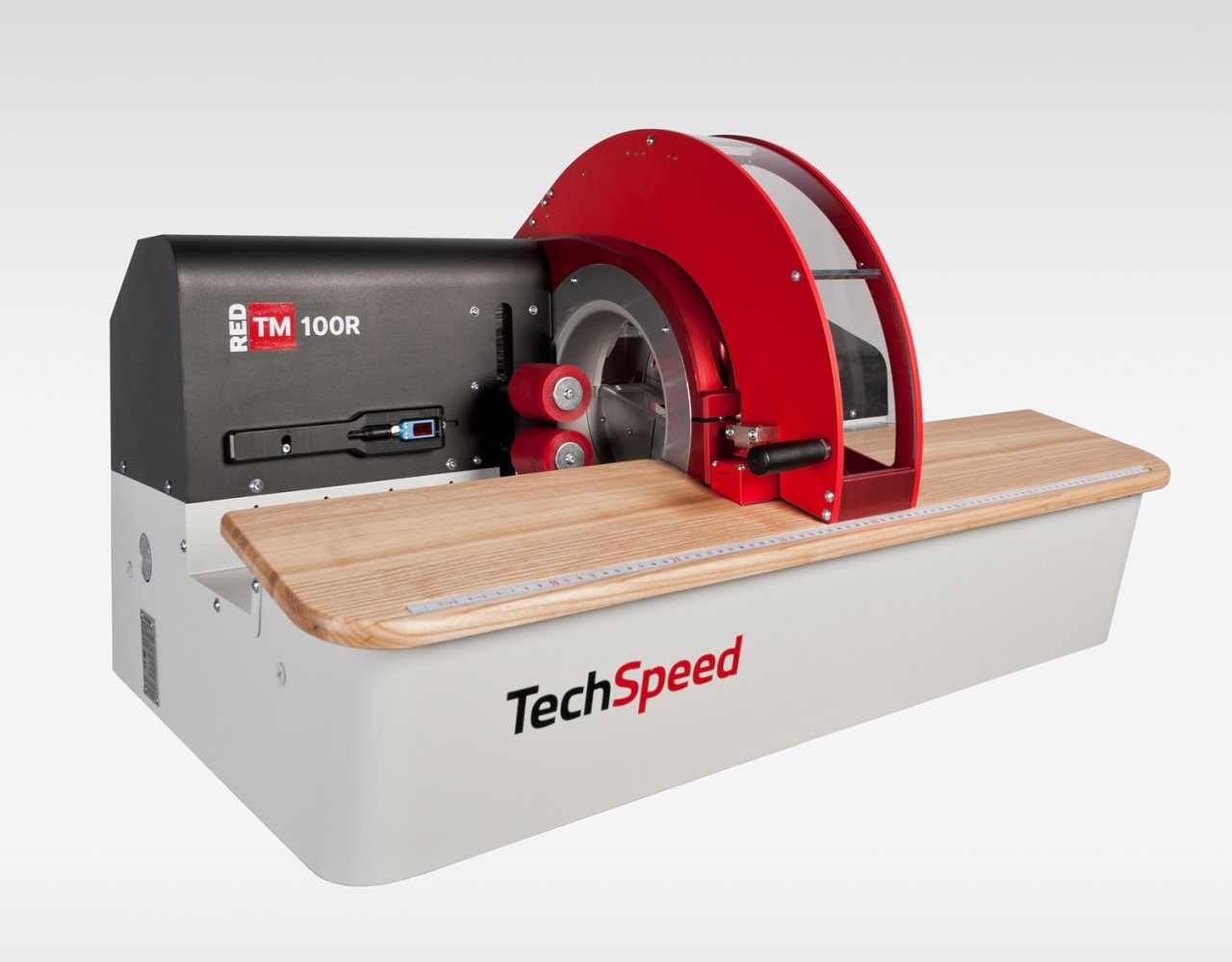

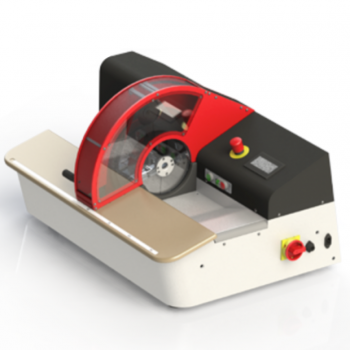

TM 100
TM 100 is all-round, table-top device for wires and wire harnesses taping. It features newest and purposeful components. These guarantees precise results and high safety level.
Used servo-motors in conjunction with digital control gives precise and repeteable tape overlap results. It’s used also for smooth start and almost immediate stop of rotating taping head. This results in easier handling and more safe usage of the machine.
Despite the fact that it is manual device, it consits of some software aids, that help speeding up and simplyfing the process of taping cable harnesses.

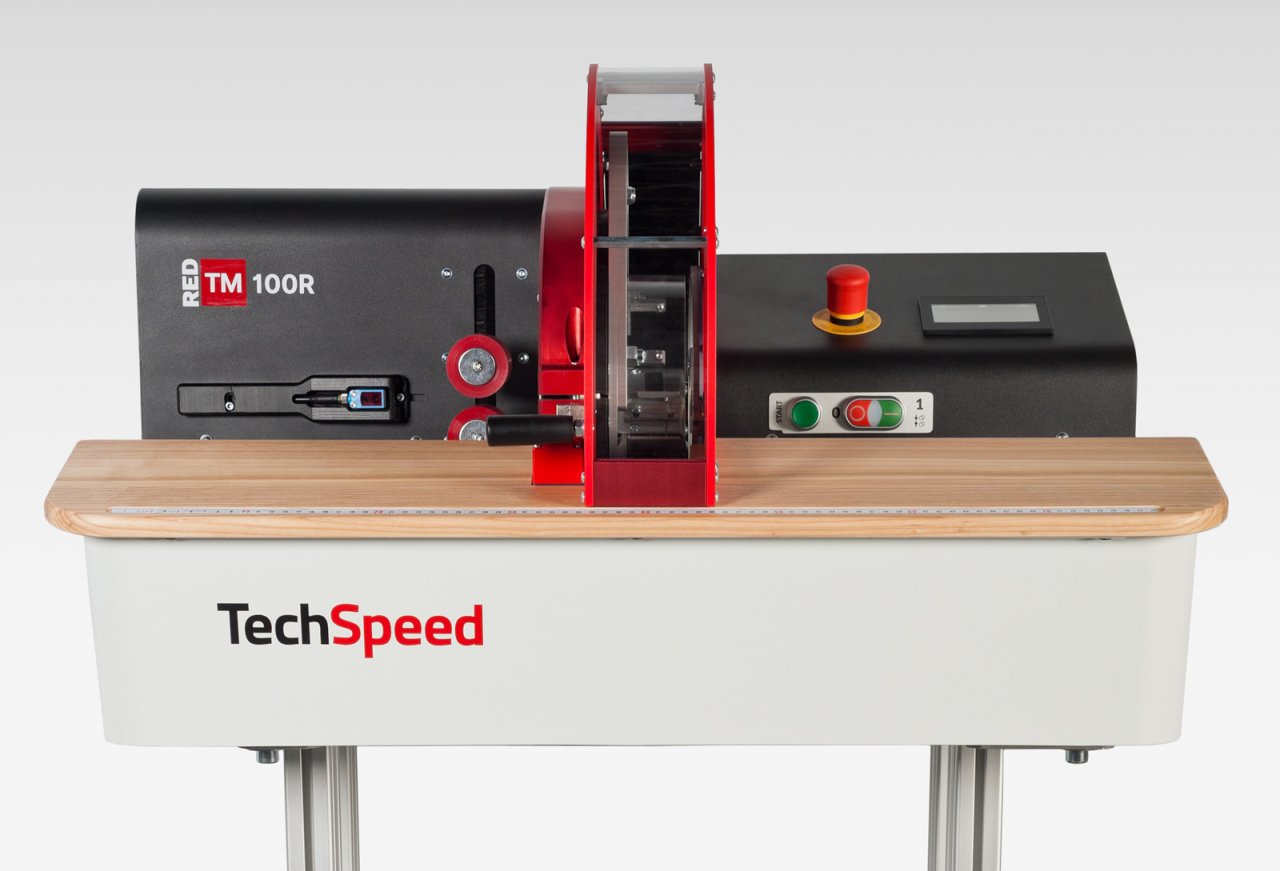

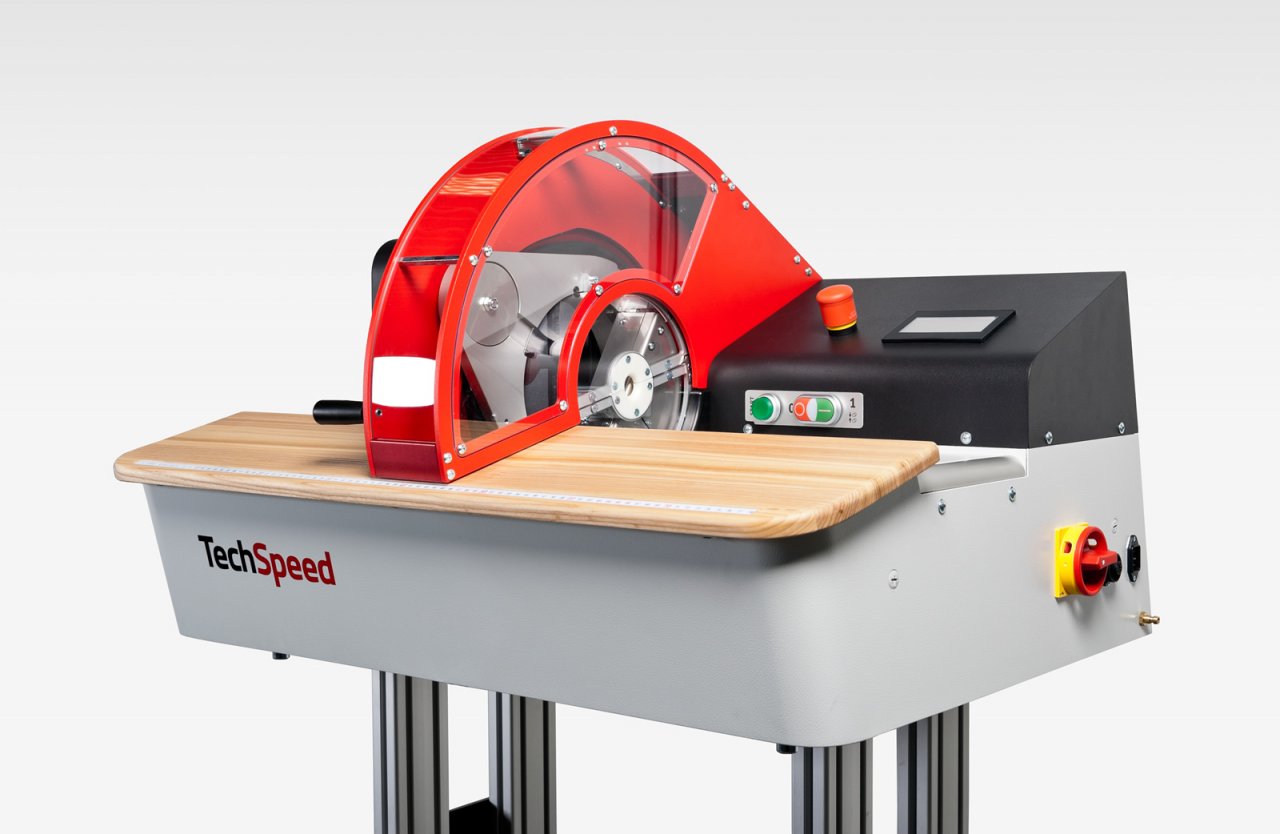

The stand depicted in gallery below is optional.
Technické parametry
| Název | Hodnota |
|---|---|
| Napájení | 230V/16A , compressed air 6 bar. |
| Rozměry | 900 x 665 x 570 mm |
| Otáčky | 0 – 1200 rpm; stepless control, max rotation speed can be set independently. |
| Průměr svazku | max. 20 mm (optional 35 mm) |
| Použití | taping of wires, simple or complex and long wire harnesses and other materials |
| Hmotnost | 95 kg |
| Šíře pásky | 9 – 19 mm |
| Materiál pásky | all available machine tapes |
