BM 50

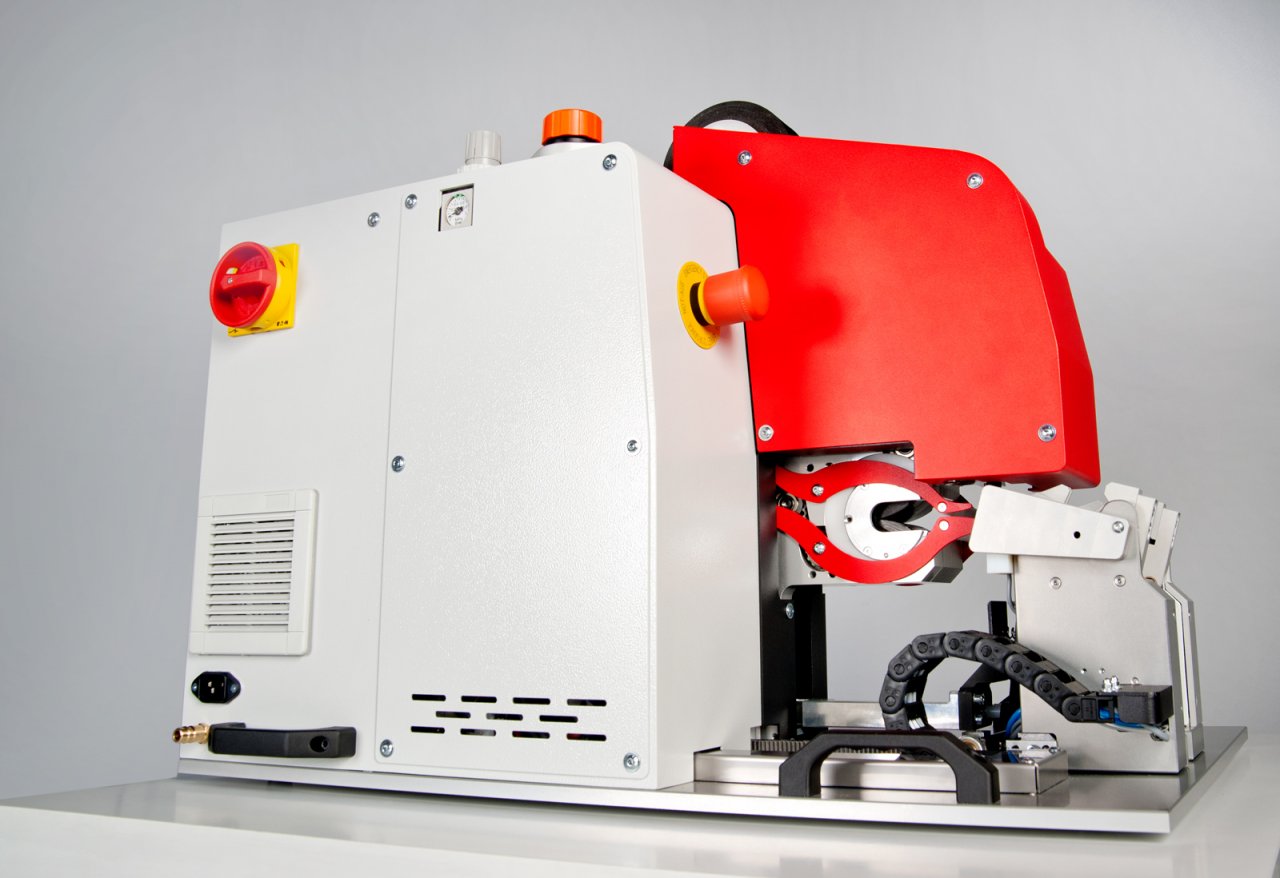

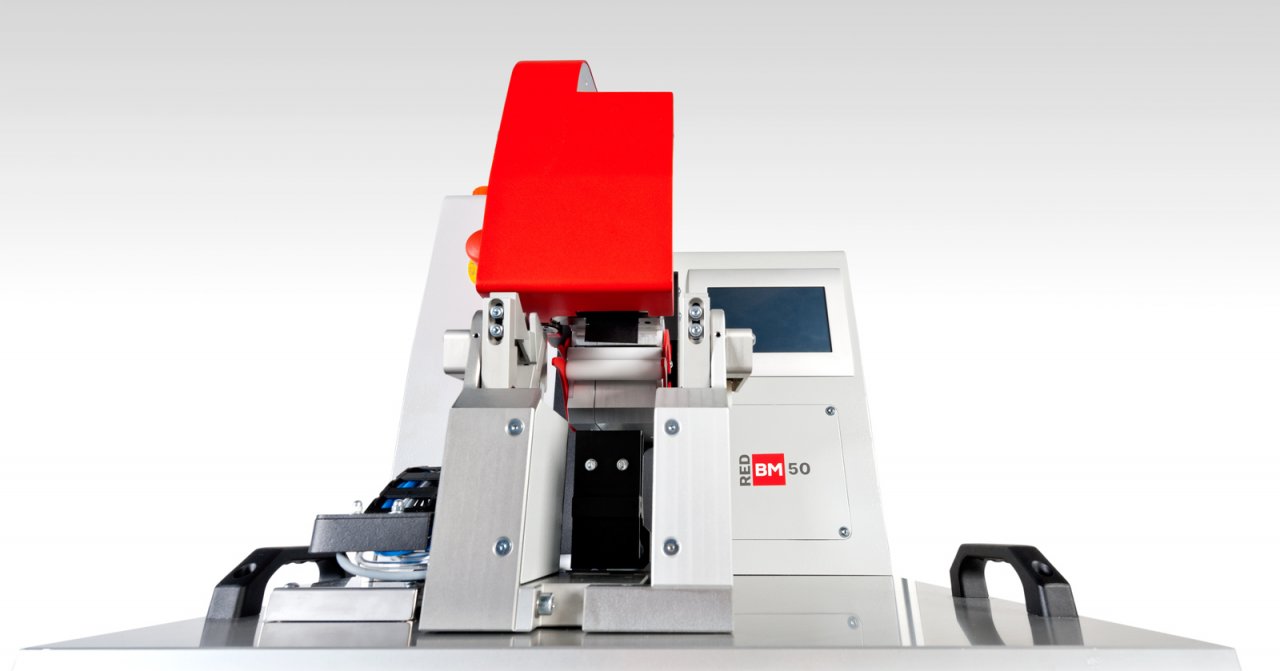

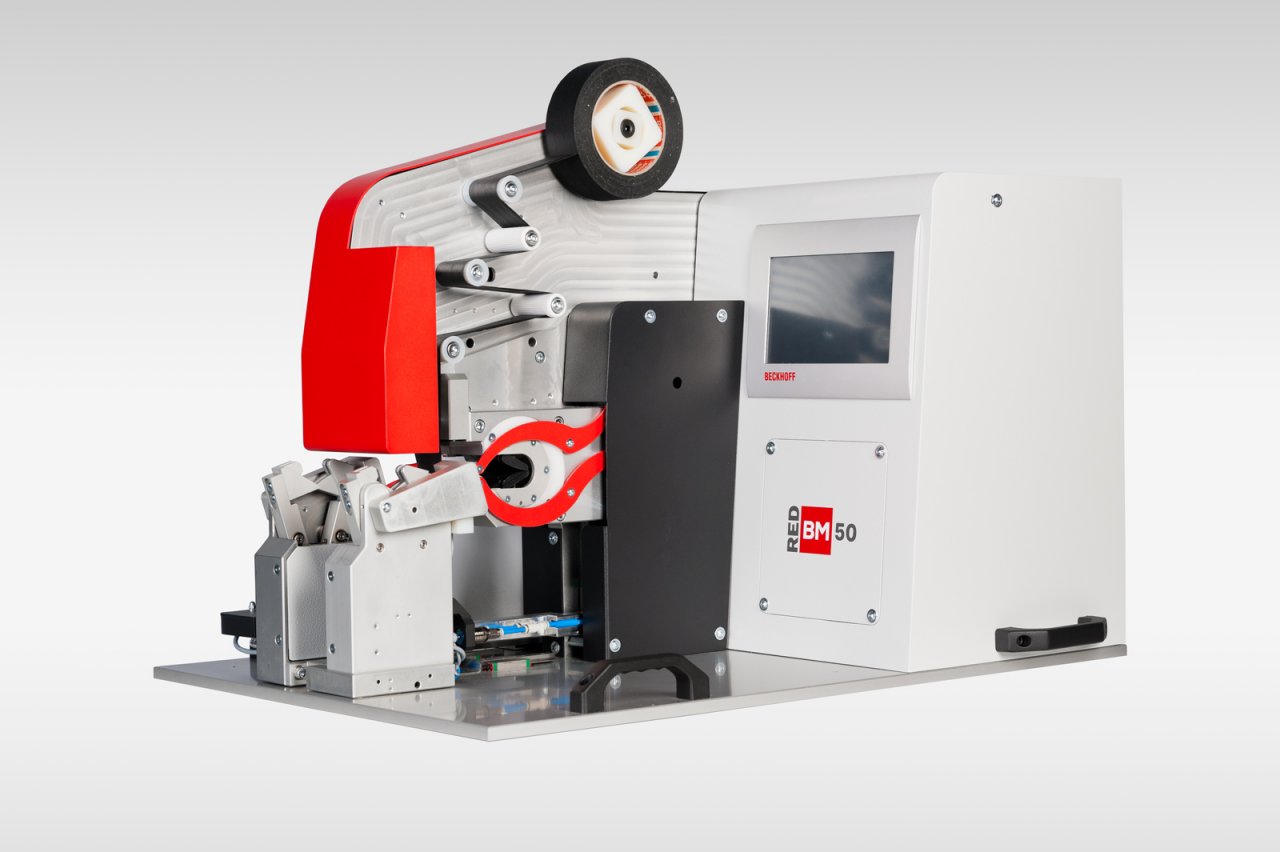

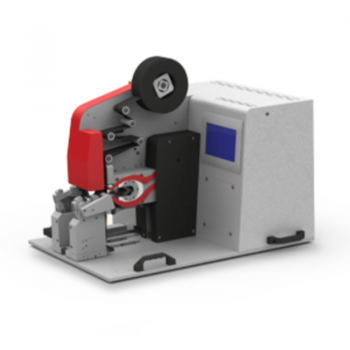

RED BM 50 is a highly versatile machine for cable bundling, insulating and marking.
Its design allows the use of various tape widths up to 50 mm and processing cables with a diameter of up to 20 mm. The components used and well thought out handling guarantee easy achievement of high-quality results. The design of the device assure reliable, stable and very safe use, and also offers a reduction of production costs.
RED BM 50 is the first device in the family with variety of add-ons. Additional equipment is available on request. It can allow insulation of one-sided splice connections, setting a smaller tape width or the option of using the bundling head as an insulation-bundling station in the technological line.
Technické parametry
Název | Hodnota |
---|---|
Napájení | 230V/10A , compressed air 6 bar. |
Rozměry | 485 x 685 x 507 mm |
Průměr kabelů | max. 21 mm |
Otáčky | 0 – 1000 rpm; stepless control, max rotation speed can be set independently. |
Průměr svazku | max. 21 mm |
Hmotnost | 55 kg |
Šíře pásky | max. 50 mm |
Materiál pásky | all available machine tapes |
